EV300Dumper

Product Overview

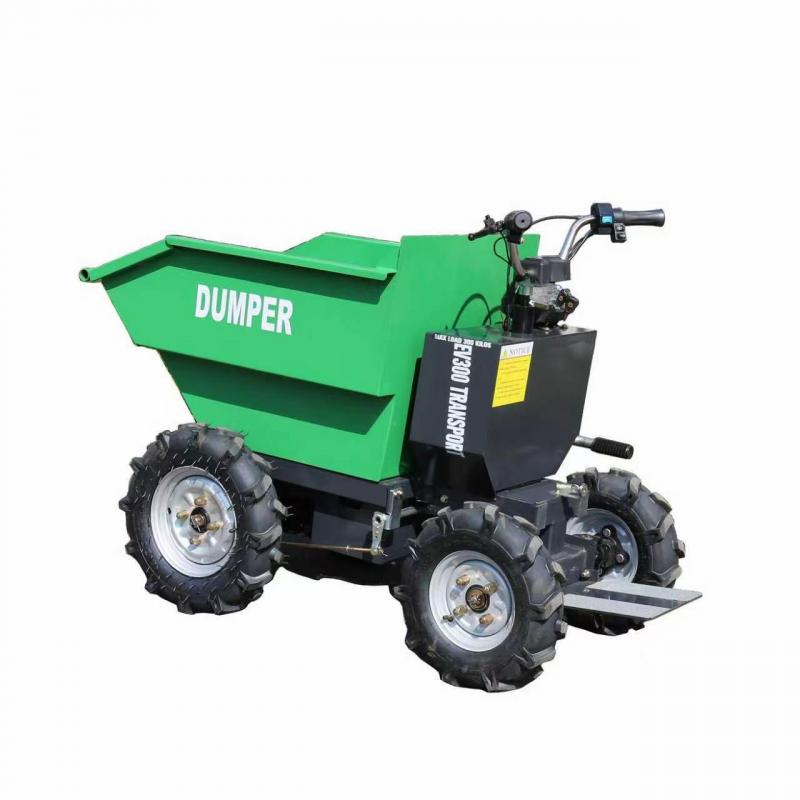

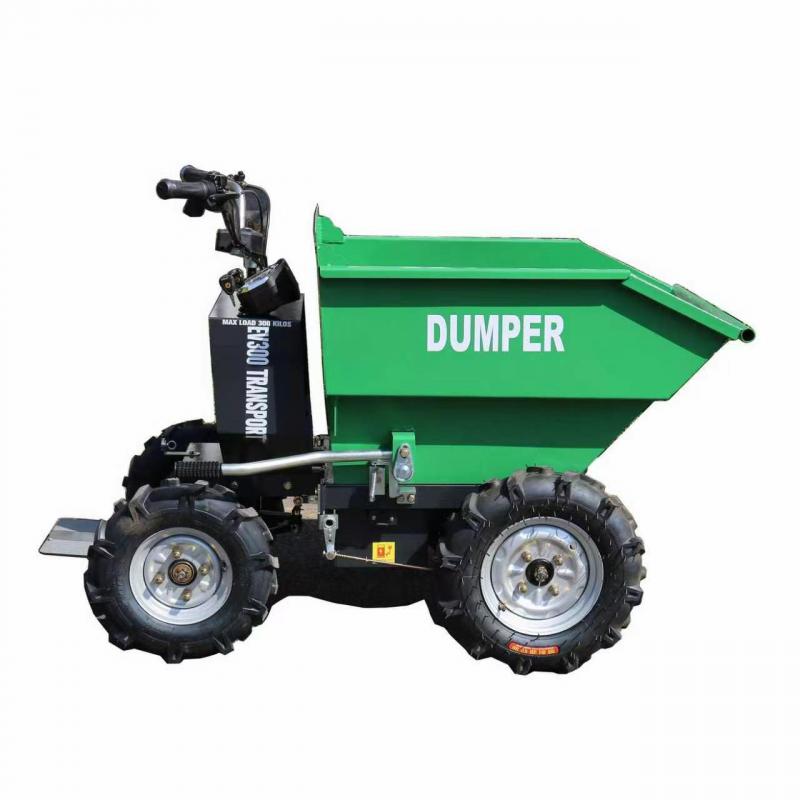

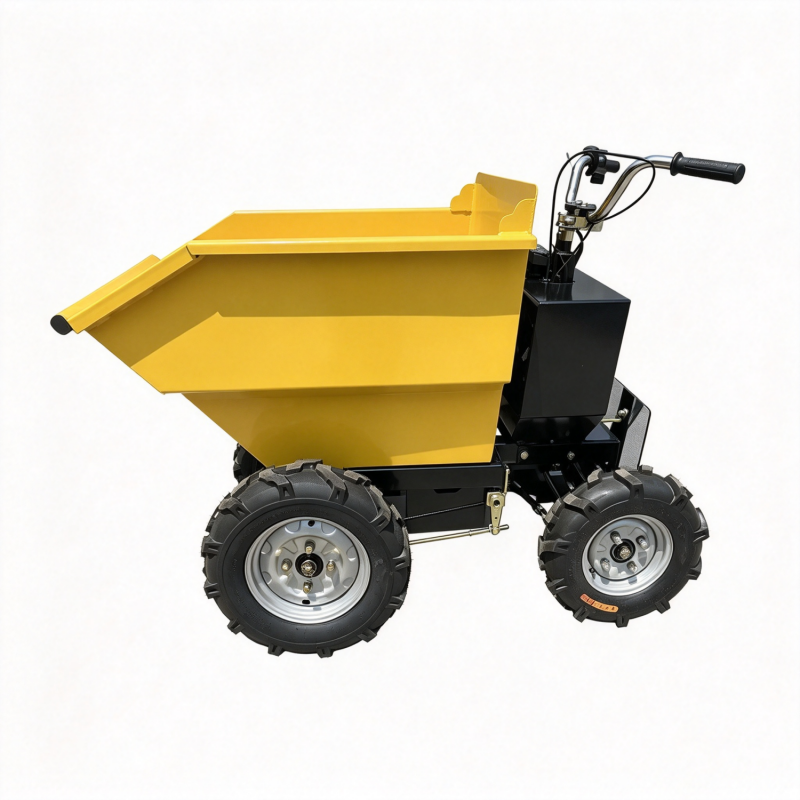

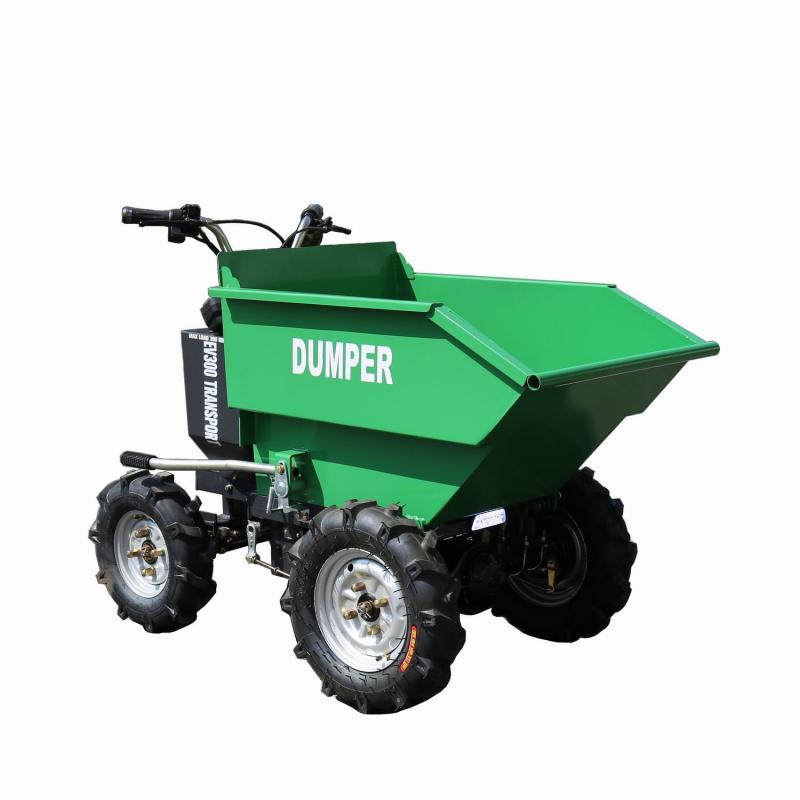

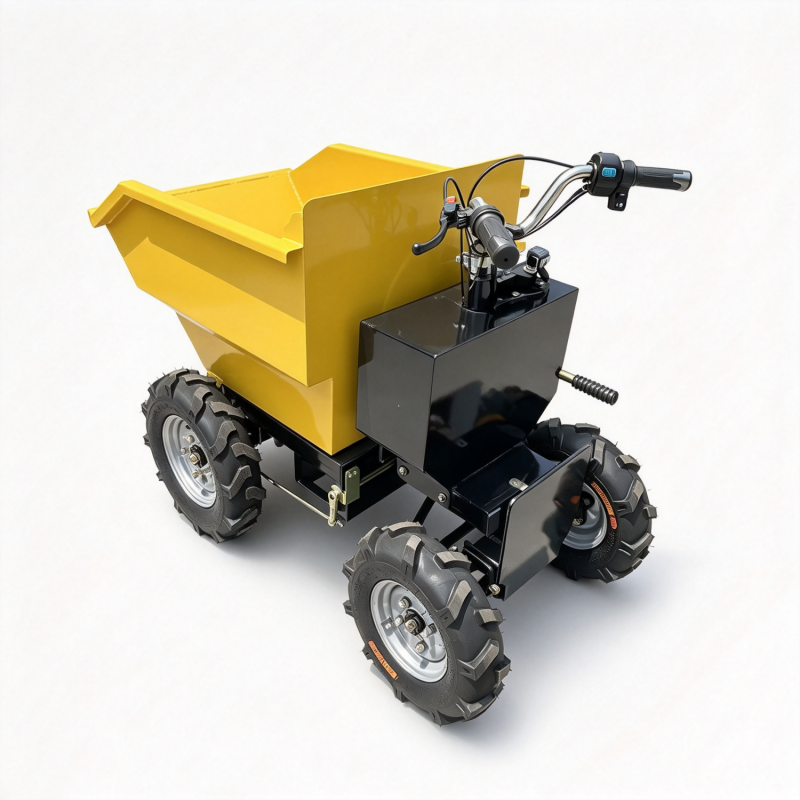

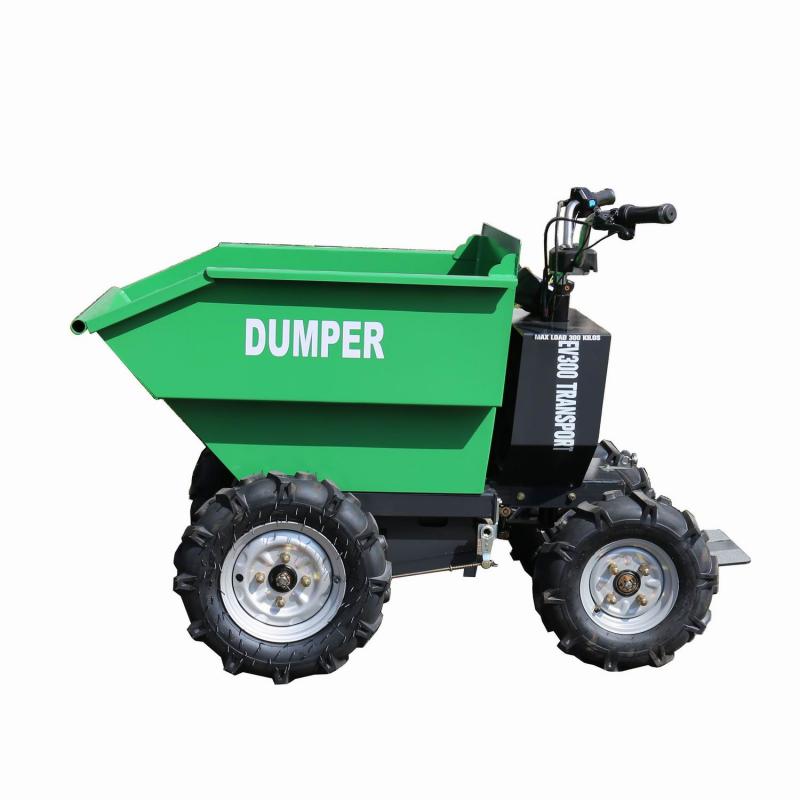

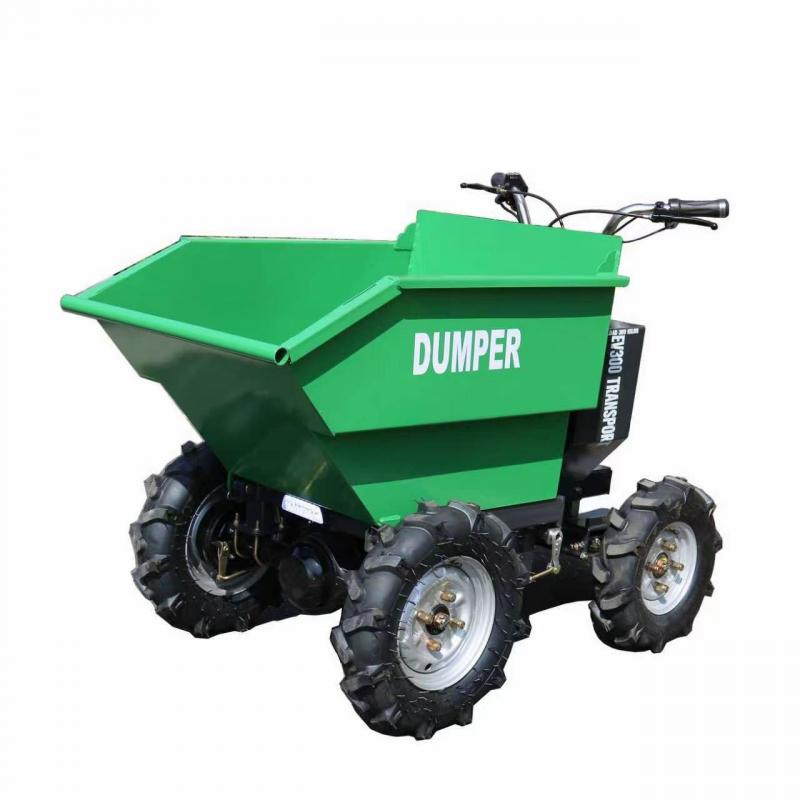

Compact four‑wheel electric transport dumper, rated load 300kg, bucket capacity 0 23m³ Powered by 48V20Ah lead‑aci

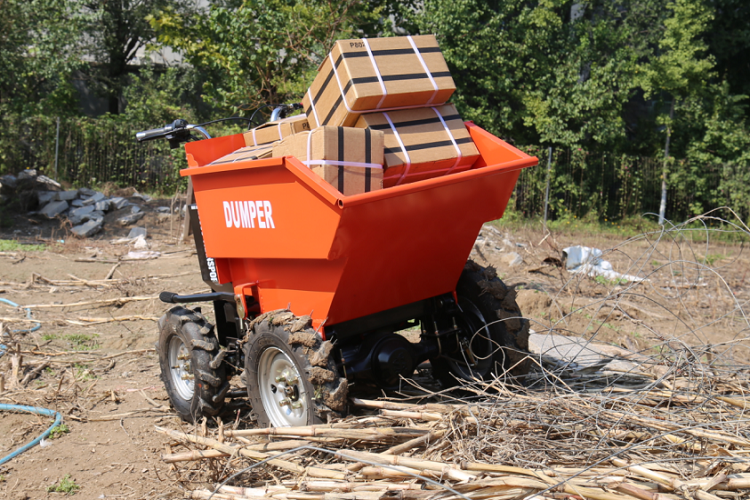

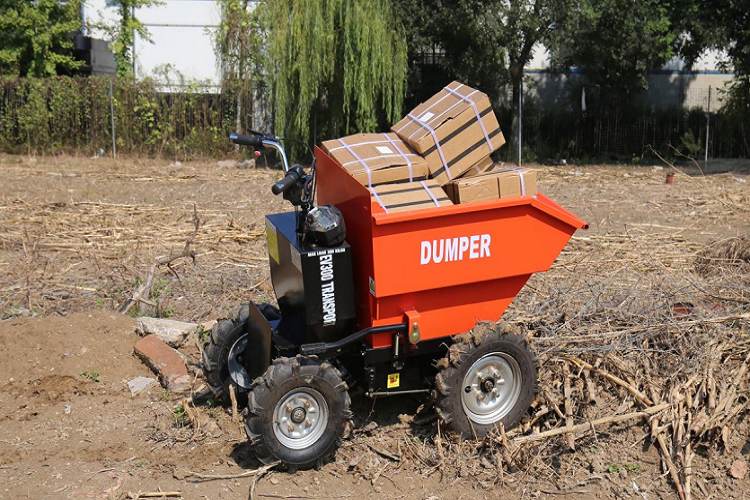

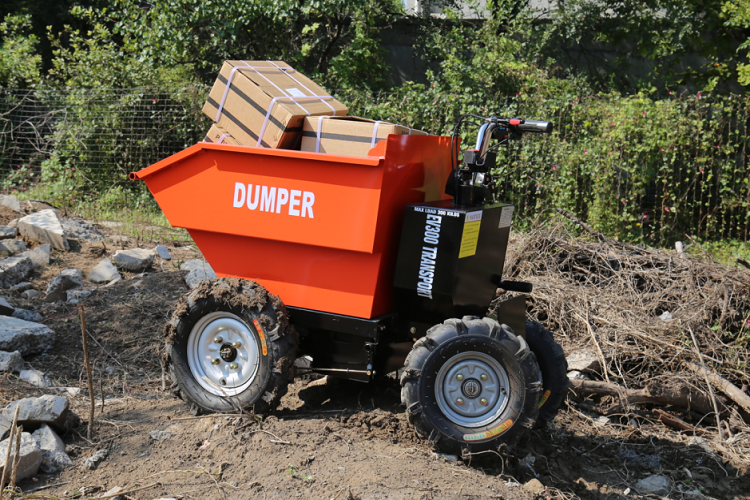

The EV300 is a compact four‑wheel electric dumper designed for material transportation on farms, orchards and construction sites. It works perfectly in narrow working spaces thanks to its small turning radius.

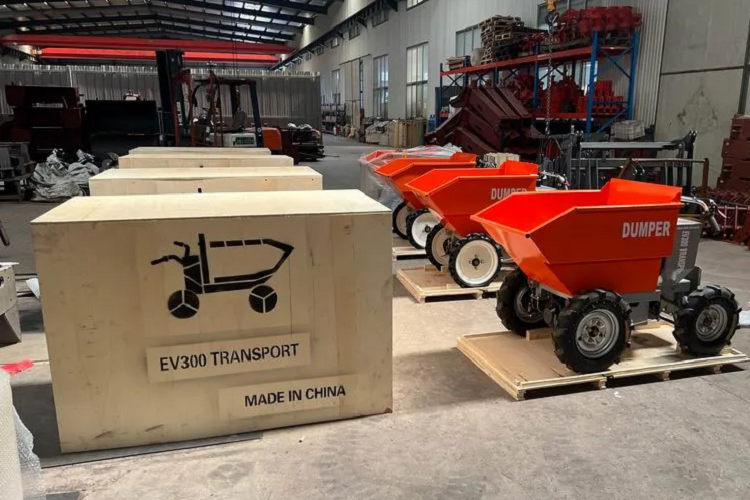

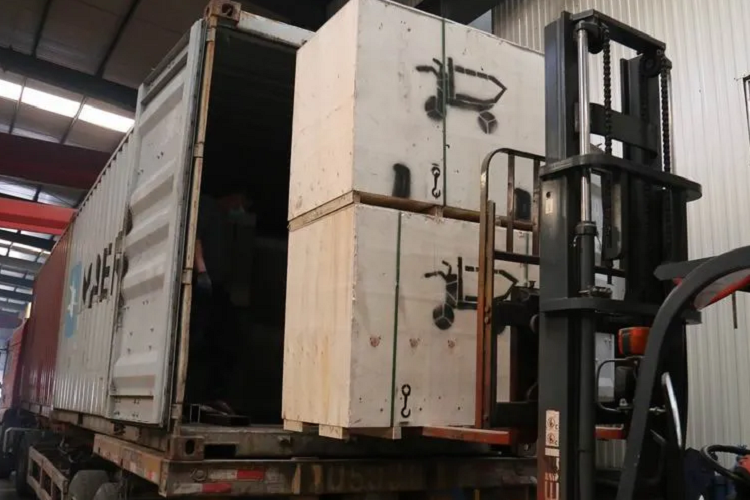

Commercial TermsUnit price: USD 560 per unit (packaging not included). Packaging cost: USD 30 per set. MOQ: 10 units. Default charging voltage: 220V/50Hz. 110V version is available with an extra charge of USD 30. Container loading quantity: 22 units for 20GP container, 44 units for 40HQ container. Package dimension: 1420×800×1060 mm; G.W. 210 kg, N.W. 175 kg.

CONTACT US

Email:davidcp712@gmail.com

Tel:+0086-536 2100978

CP Machinery ALWAYS WITH YOU and stay up-to-date on upcoming promotions.

Product parameters

Here are the available machinery sizes and specs.

Find Machinery Size

Model	EV300
Rated	300kg
Dimension(L x W x H)	1408740965
Minimum turning radius	1.5m
Machine Weight	170kg
Bucket capacity（m³）	0.23m³
Motor endurance（h）	5h
Motor charging time	5-6h
Maximum grade ability	15°
Charging voltage	220V/50Hz (can change 110V )
Battery Model(lead acid)	48V20ah

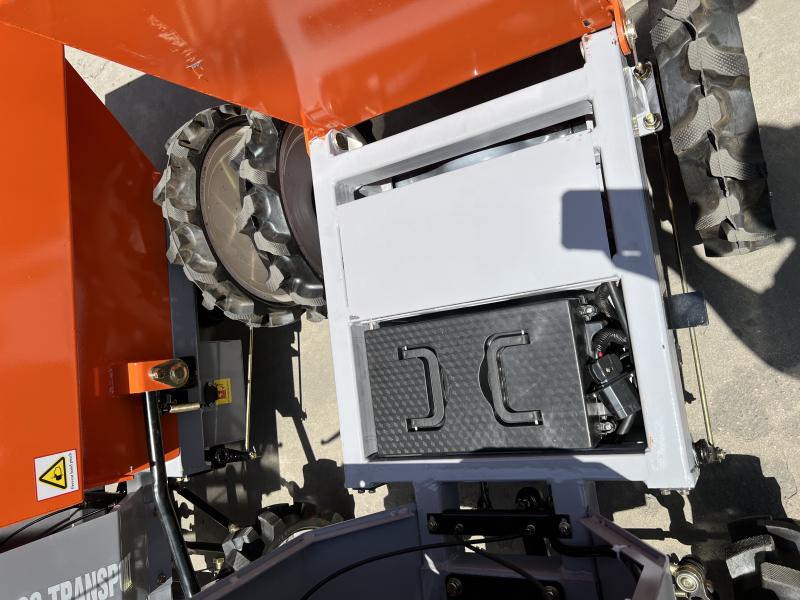

Battery box dimensions	375 mm (L) × 190 mm (W) × 200 mm (H)
Steel plate	Q235, thickness 3 mm

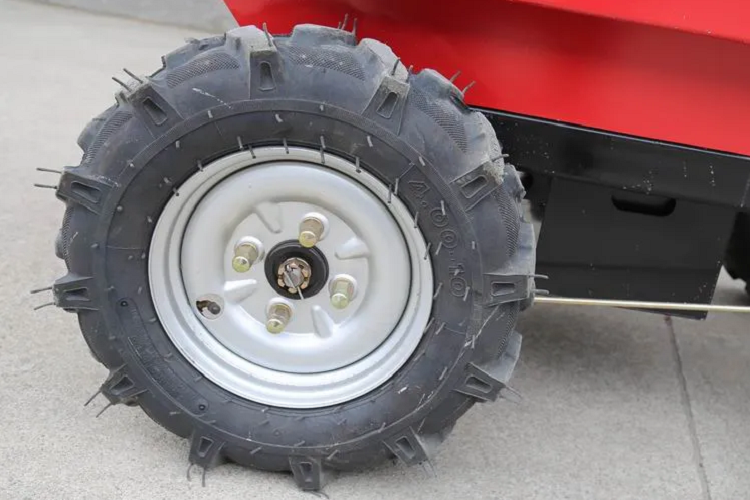

tires（Front）(With inner tube, not tubeless)	4.00-10
tires（rear）	4.00-8
Tire pressure	0.25mpa
Maximum front speed(High）	15km/h
Maximum front speed (middle）	12km/h
Maximum front speed(Low）	9km/h
Maximum Back speed	6km/h

Package size(mm)

1420*800*1060

G.W.：210KG

N.W.:175KG

Compact four‑wheel electric transport dumper, rated load 300kg, bucket capacity 0 23m³ Powered by 48V20Ah lead‑aci

Compact four‑wheel electric transport dumper, rated load 300kg, bucket capacity 0.23m³. Powered by 48V20Ah lead‑acid battery, 5 hours working time, 5‑6h charging. Min turning radius 1.5m, max climbing 15°. Forward speed:9‑15km/h, reverse 6km/h. Solid Q235 3mm steel body. Ideal for farm, orchard and construction narrow‑site material hauling. Price: USD560/unit (without package). Package fee USD30/unit. 110V option +USD30. 20GP:22units, 40HQ:44units.
