Skidder 220

Product Overview

overall weight17000kgwinch dnve typehydraulic motor drivemaximum tractive force172KNmaximum wirerope speed10 m minmaximu

1、Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.

2、Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable

3、Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety

4、Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise ,high reliability .Double-stage air filter is standard equipment for dusty fields.

5、Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable

6、Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy

7、Pilot hydraulic implement controls make operate easy and comfortable

8、The big loading engine side covers made in steel are of good appearance and suitable for maintenance

CONTACT US

Email:davidcp712@gmail.com

Tel:+0086-536 2100978

CP Machinery ALWAYS WITH YOU and stay up-to-date on upcoming promotions.

Product parameters

Here are the available machinery sizes and specs.

Find Machinery Size

overall weight	17000kg
winch dnve type	hydraulic motor drive
maximum tractive force	172KN
maximum wirerope speed	10 m/min
maximum grade ability	30℃
drum capacity	20*100
diameter of Winch drum（cable type）	1020
lifting height of push plate	819mm
Earth cutting depth of push plate	218mm
overall dimension (L×W×H)	7300×3050×3550mm
minimum turning radius	6300mm
model	WeichaiWP10G220E22
Emission Standard	lnline/water cooling/dry cylinder injection
No. of cylinder-bore/stroke	6－126×130mm
rated power	162kw--2000r/min
maximum torque	920N.m
min fuel-consume ratio	≤215g/kw.h
torque converter	Single-stage, three-element, centripetal torque converter
gearbox mode	Fixed Shaft Power Shift
gear shift	4forward shift 4reverse shift
maximum speed	41km/h
main reducing spiral	bevel gear grade 1reduction
decelerating mode	planetary reduction,grade 1
wheel base (mm)	3450mm
wheel tread	1750mm
minimum ground clearance	430mm
system working pressure	18MPa
boom lifting time	1.5S
fuel tank capacity	280L
service brake	air over hydraulic disc brake on 4 wheels
parking brake	manual parking brake
type specification	23.5-25 • Herringbone pattern
front tyre pressure	0.4Mpa
rear tyre pressure	0.35Mpa

overall weight17000kgwinch dnve typehydraulic motor drivemaximum tractive force172KNmaximum wirerope speed10 m minmaximu

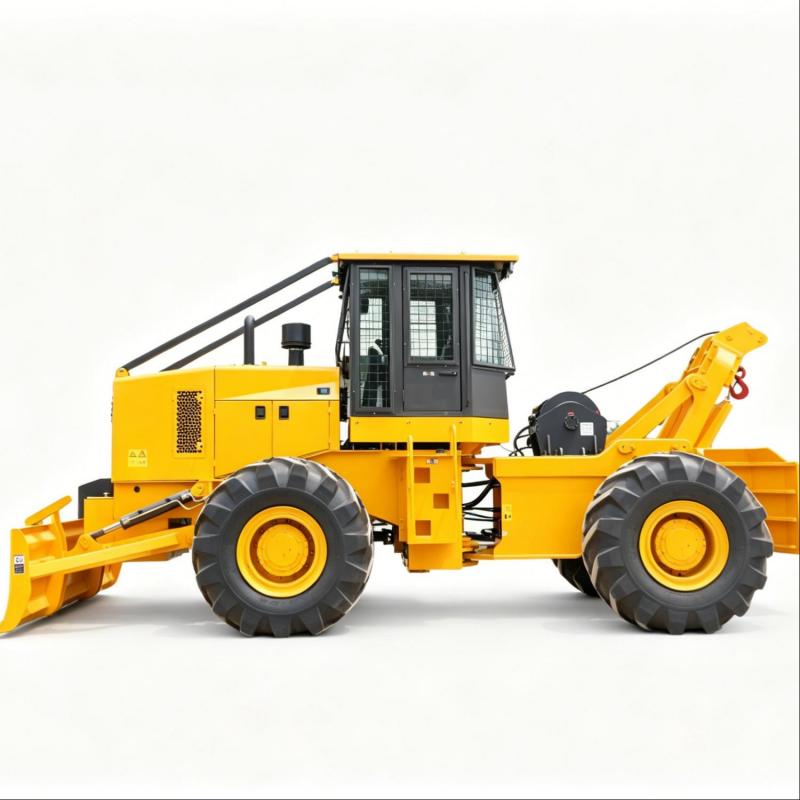

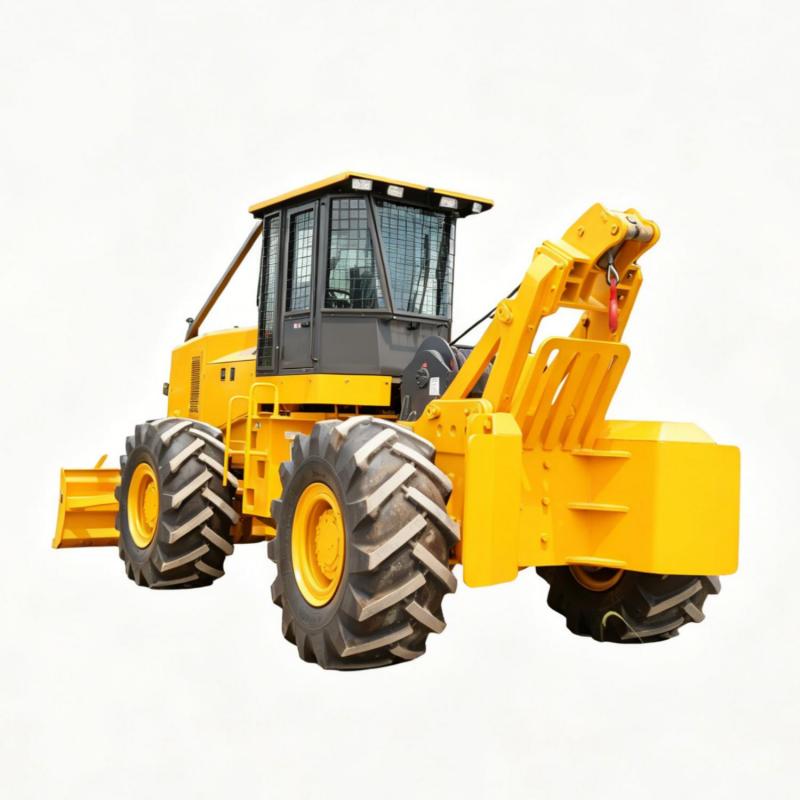

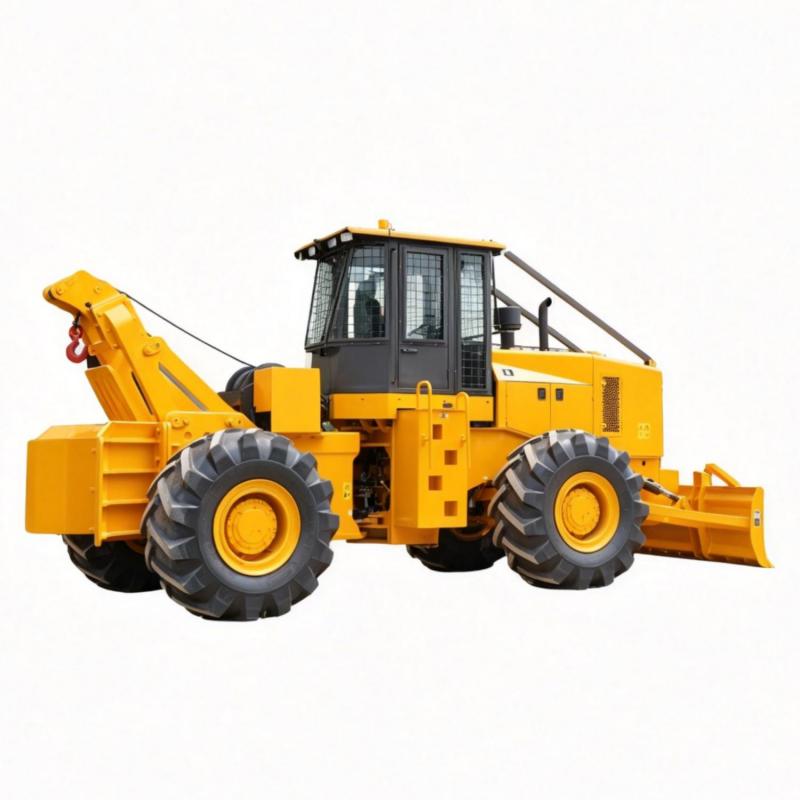

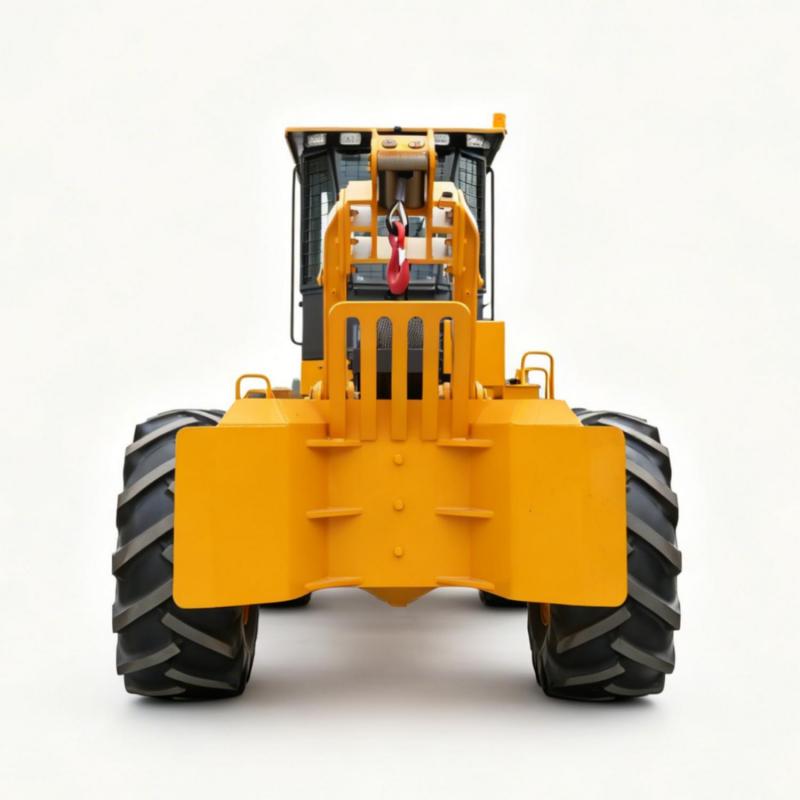

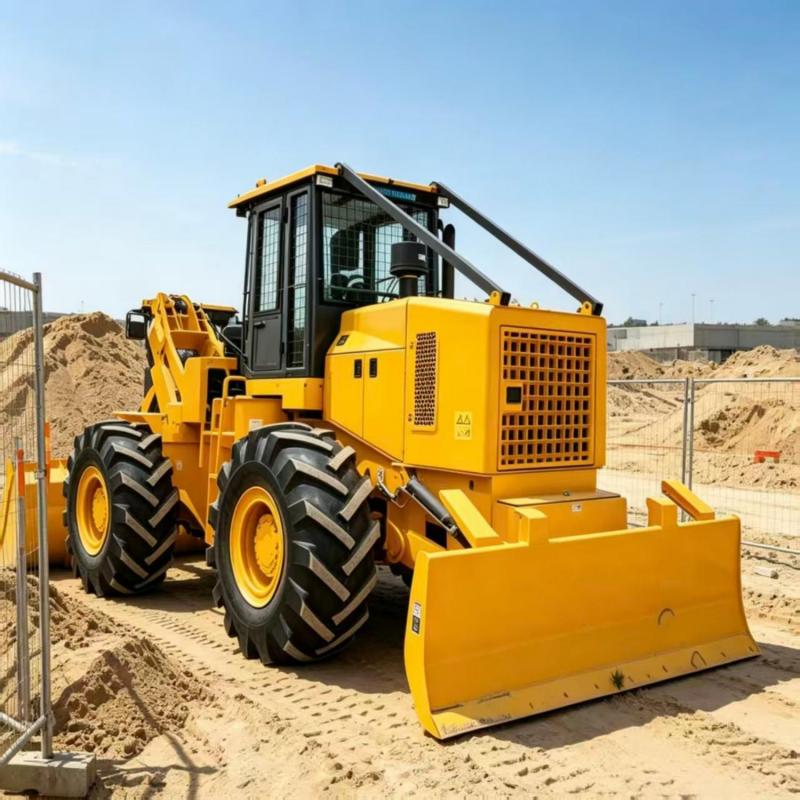

The CPM220 skidder is heavy‑duty forestry machinery specially designed for log skidding, timber hauling and land clearing operations in tough woodland conditions. The selling price is USD 54500 per unit, and a competitive price of USD 53500 is available upon negotiation.

Weighing 17000 kg, this skidder is powered by a reliable Weichai WP10G220E22 inline water‑cooled 6‑cylinder engine. It delivers rated power of 162 kW at 2000 r/min and peak torque up to 920 N·m, with low fuel consumption ≤215 g/kW·h, ensuring strong power output and good fuel economy for long‑time forest site work.

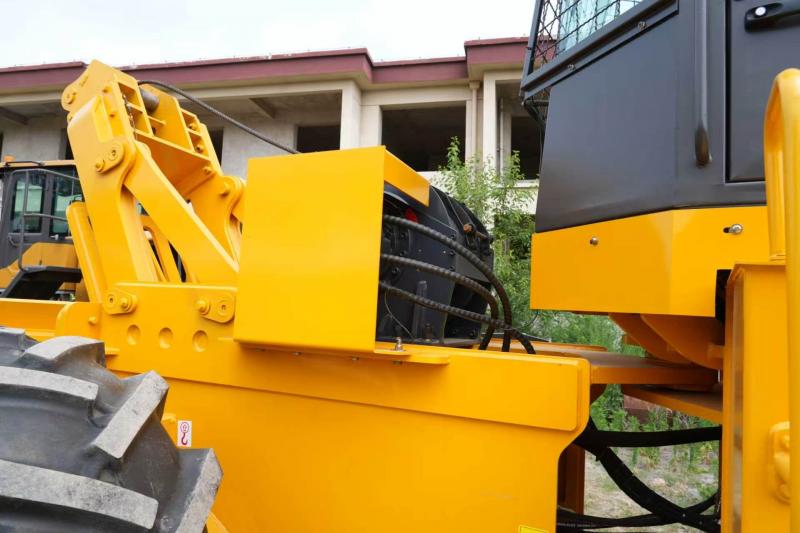

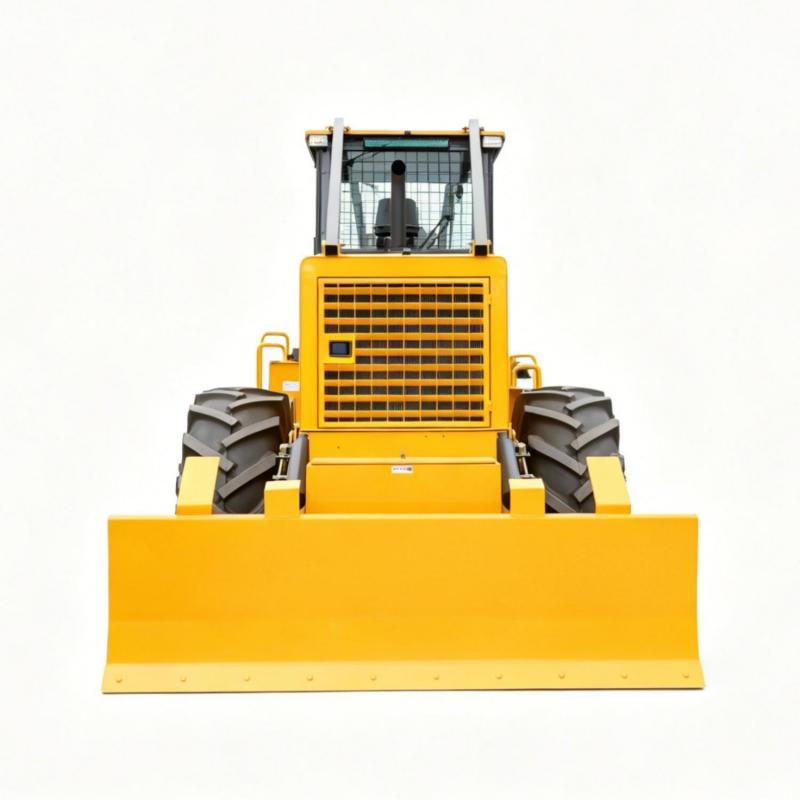

Equipped with a hydraulic‑motor‑driven winch system, the machine achieves maximum tractive force of 172 KN and wire rope speed up to 10 m/min. The winch drum supports large‑capacity wire rope storage for efficient log dragging tasks. A front push plate provides 819 mm lifting height and 218 mm earth‑cutting depth, helping operators clear obstacles and level ground at the logging site.

Its transmission system adopts a single‑stage three‑element centripetal torque converter matched with fixed‑shaft power‑shift gearbox, offering 4 forward and 4 reverse gears. The maximum travel speed reaches 41 km/h for fast site transfer. With 30‑degree gradeability, 430 mm high minimum ground clearance and large 23.5‑25 herringbone‑pattern forest tires, the skidder passes through muddy, uneven and sloped forest terrain with excellent off‑road performance.
