Type	Name	Description
general information	Brand	Shanwo
	Model:Telehandler	625
Engine	Type	Diesel
	Model	YN28G
	kw	55KW
	Horse Power	75
	Number of cylinders	4
	Brand	Yunnei
	Emission Standard	chianII
	No. Of cylinder	4
Equipment Parameter	Dimension (without   fork)	4100*2000*2050
	Weight	6200
	Pallet fork Size	1220*125*45
	Maximum lift capacity	2500
	Lift height	5850
	Reach at maximum lift   height	1500
	Maximum forward reach	3000
	Front track	1725
	Wheelbase	2550
	Forward extension   dimension	2150
	Finally to the front   wheel tire length	3450
	Overall length to   front tyres
	Overall length to   front carriage	5170
	Ground clearance	250
	Outside turn   radius(over tyre)	4000
	Carriage roll back   angle(degrees)	28°
	Carriage dump   angle(degrees)	33°
	Fuel tank volume	70L
	Hydraulic oil tank   volume	95L
	Drive speed	20
Tyre	Tyre	12-16.5
	Number of Tyre	4
Cabin	Inside width of cab	820
	Air Conditioner	Optional
	Steering	YES
Container loading   plan	40ft General Purpose   Container	3unit
	ft High Cube   Container	1unit

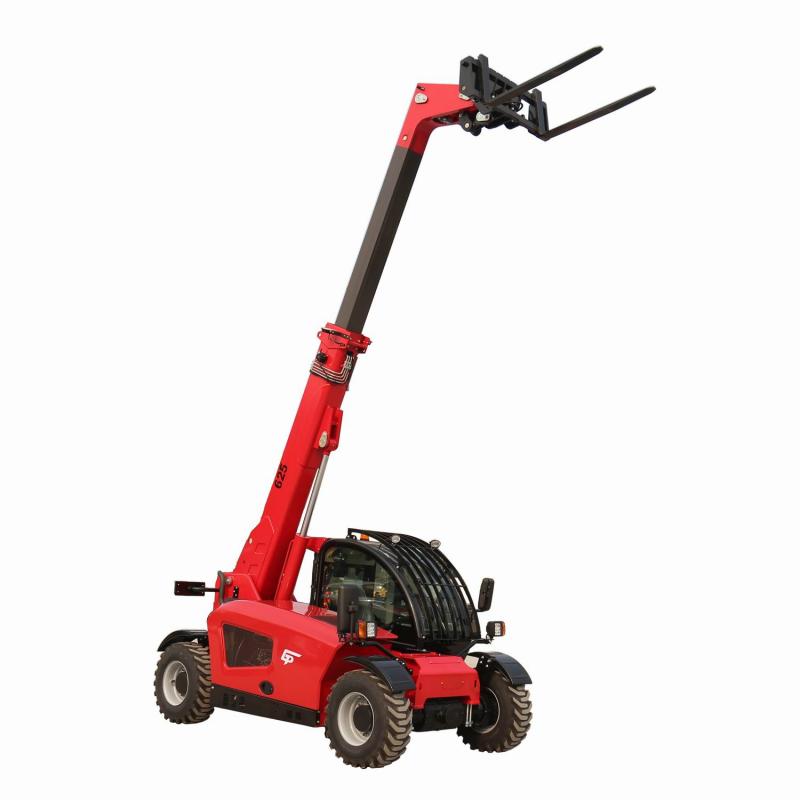

With a maximum lifting capacity of 2500kg and a maximum lift height of 5850mm, the 625 Telehandler excels at ha

• With a maximum lifting capacity of 2500kg and a maximum lift height of 5850mm, the 625 Telehandler excels at handling heavy loads at significant heights, making it ideal for construction sites, farmyards, warehouses, and logistics centers. Its impressive maximum forward reach of 3000mm and a reach of 1500mm at full lift height allow operators to place materials precisely in hard-to-reach areas, reducing the need for additional equipment and improving overall worksite efficiency. Designed for stability and maneuverability, the machine features a wheelbase of 2550mm, a front track of 1725mm, and a tight outside turning radius of 4000mm (over the tires), enabling it to navigate confined spaces with ease. A generous ground clearance of 250mm ensures smooth travel over rough, uneven terrain, making it suitable for outdoor construction and agricultural sites where ground conditions may be challenging. Durability and practicality are at the core of the 625 Telehandler's design. The machine has an overall weight of 6200kg, providing a solid, stable base for lifting operations. The carriage offers a rollback angle of 28° and a dump angle of 33°, allowing for secure load retention and efficient material discharge. With a 70L fuel tank and a 95L hydraulic oil tank, the telehandler supports long working hours without frequent refueling or maintenance stops, maximizing uptime on busy job sites.

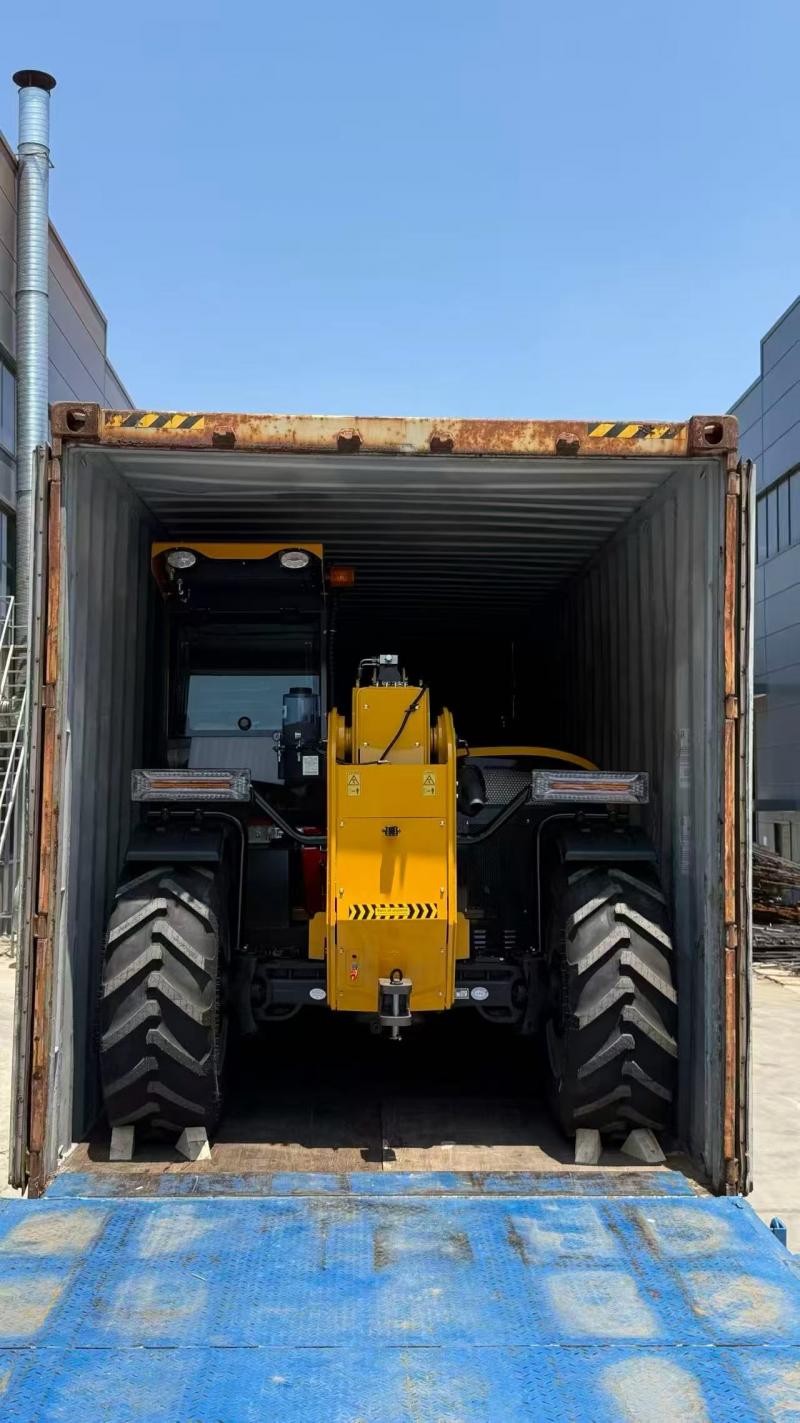

Packaging & Shipping
