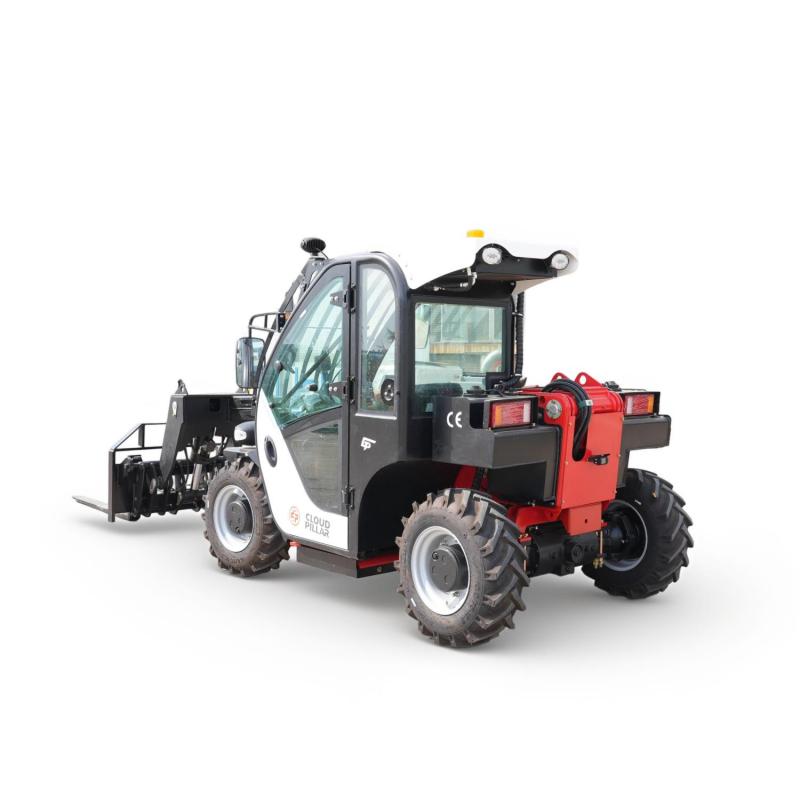

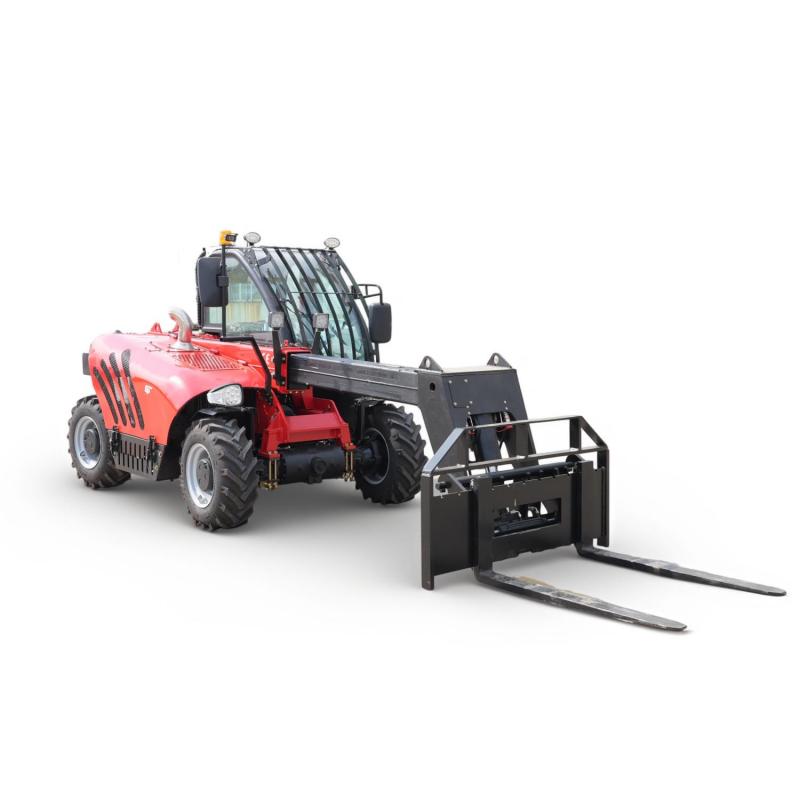

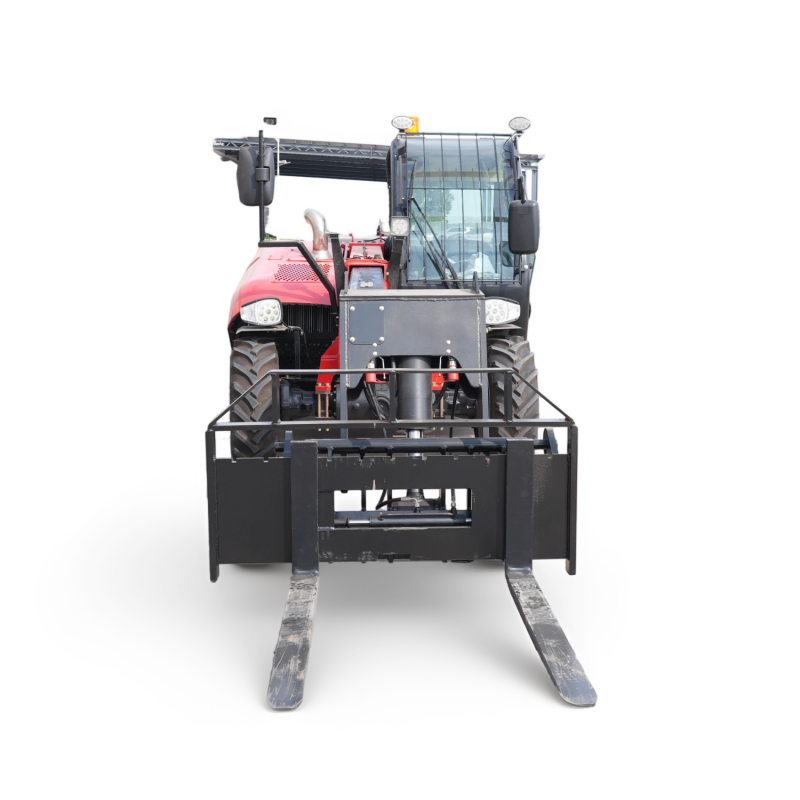

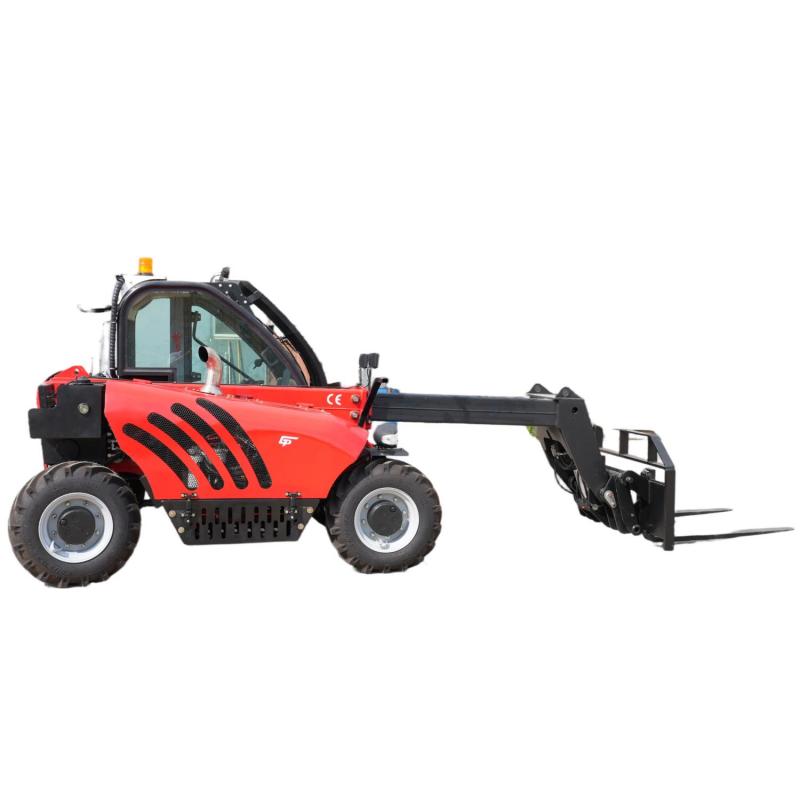

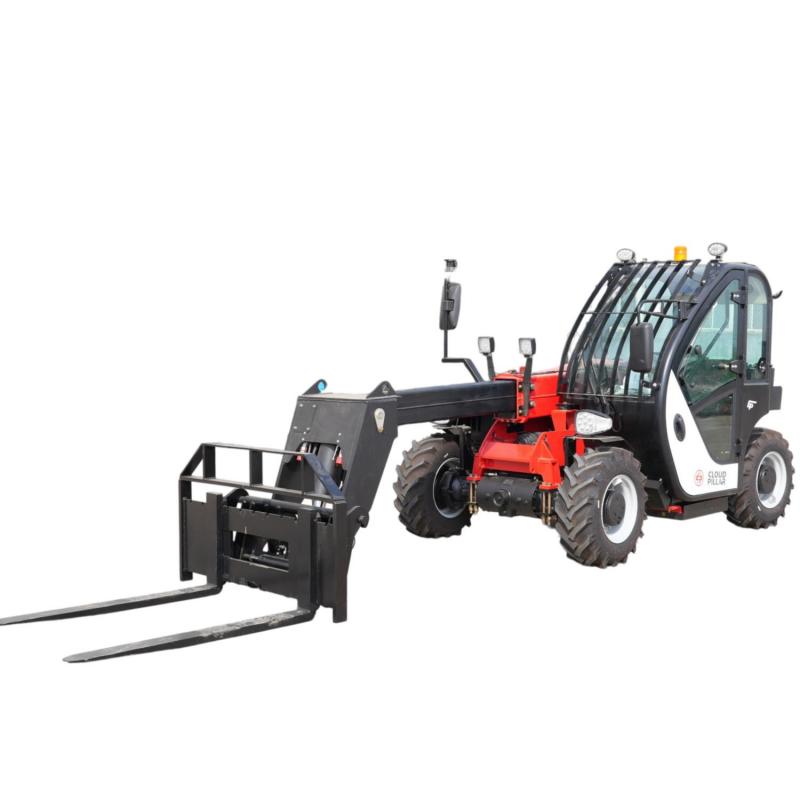

415T telehandler

Product Overview

It adopts reliable PWG brand hydrostatic transmission system The first gear speed ranges from 0 to 8 kilometer

This CPM415 compact telehandler is manufactured by professional Chinese machinery factory for global construction agriculture and logistics markets. It has maximum load capacity of 1500 kilogram and maximum lift height up to 4000 millimeter to meet diversified material handling requirements. The machine unload weight reaches 2750 kilogram for stable operation in complex working conditions. It provides rated power of 18.8 kilowatts and maximum torque no less than 86 with displacement of 1.532 liters.

CONTACT US

Email:davidcp712@gmail.com

Tel:+0086-536 2100978

CP Machinery ALWAYS WITH YOU and stay up-to-date on upcoming promotions.

Product parameters

Here are the available machinery sizes and specs.

Find Machinery Size

Max. load	1500kg
Max. lift height	4000mm
Weight unload	2750kg
Tyre model	10-16.5
Optional tyre model	12-16.5 wider tyre
Overall height	1950mm
Overall width	1780mm
Inside width of cab	800mm
Track	1350mm
Wheelbase	2300mm
Overall length to front carriage	3300mm
Ground clearance	380mm
Engine
Brand/model	EURO5 LAIDONG LL385BT
Rate power	18.8KW
Type	Water-cooled,turbocharged,three-stroke
Max.torque	≥86
Displacement	1.532L
Optional engine	KUBOTA 1703 18.5KW YANMAR 3TNV86CT-DTY 32.3KW
Transmission
Brand	PWG
Type	Hydrostatic
Speed first gear	0-8km/h
Speed second gear	0-16km/h
Drive axle	Planetary-steering drive axle
Hydraulic system
Brand	PWG
Work pump	Gear pump
Discharge volume(L)	33.6
Pressure(Bar)	225
Others
Pallet fork length	1070mm
Hydraulic oil tank	36L
Diesel tank	33L
Drive type	4 wheel drive
Steering type	Front Wheel Steering Four Wheel Steering Crab Steering
Warranty time	1 year or 1200 working hours, whichever comes first.
Package(1*20GP)	2 units

It adopts reliable PWG brand hydrostatic transmission system The first gear speed ranges from 0 to 8 kilometer

It adopts reliable PWG brand hydrostatic transmission system. The first gear speed ranges from 0 to 8 kilometer per hour and second gear speed ranges from 0 to 16 kilometer per hour for flexible travelling speed adjustment. Planetary steering drive axle supports three steering modes including front wheel steering four wheel steering and crab steering. This multi steering design makes the machine move freely in narrow construction zones farm yards and compact warehouse sites. The PWG hydraulic system is equipped with gear pump with discharge volume of 33.6 liters per minute and working pressure of 225 bar, which delivers stable and powerful hydraulic output for boom lifting and pallet fork actions. The standard pallet fork length is 1070 millimeter for pallet cargo loading and stacking. The hydraulic oil tank volume is 36 liters and diesel tank volume is 33 liters for long continuous working cycles without frequent refueling. Four wheel drive configuration brings outstanding off road performance on muddy farmland gravel construction ground and uneven outdoor terrain.
