Model			W580
Performance	Rated Load（t)		0.6
	Bucket rated   capacity（m³)		0.2
	Dumping   height（mm)		1260
	Lifting   Height（mm)		2175
	Dumping   Reach（mm)		560
	Max. Lifting   weight（kg）		650
	Max.   Excavation Force（kN)		10
	Max. Gradeability		30°
	Max. Turning   Angle		36°±1
	Swing degree of the rear axle		7°
Dimensions.   &.Weight	Overall length（Bucket on Ground position）mm		3140
	Wheel width（overall width）		1100
	Overall   Height(mm)		2085
	Wheel   base(mm)		1380
	Min Ground   Clearance(mm)		160
	Net Weight（kg)		1300
	Turning   radius		2700mm
Battery	Battery   Model No.		12V-100
	rated   capacity（3hr)		100Ah
	No.of   battery groups		5
	Rated   Voltage		60V
	Working hours（h）		3-4h

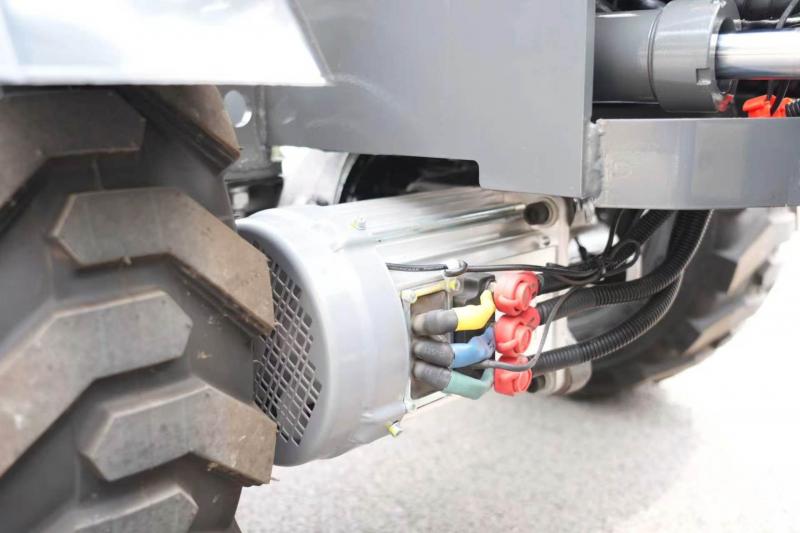

Transmission   System	Hydraulic System	Motor No.	P5112
		Voltage	60V
		Power	3000W
		Displacement（mL/r)	12

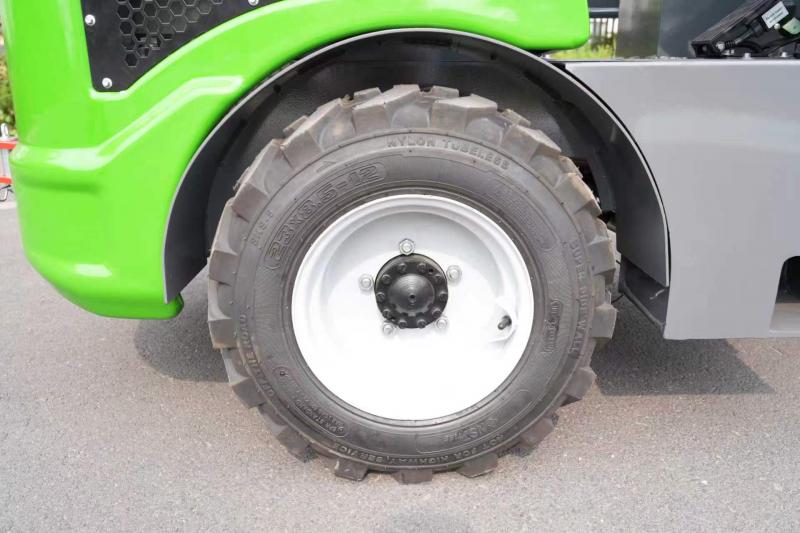

	Tyres	Type	23.5*8.5-12
		working   pressure（MPa)	0.3
		Power	2500W
		Number of   travel motors	2
Steering   System	Type of   Steering Hydraulic System	Full   Hydraulic Steering System
	System   Pressure（MPa)	16
	Type of   Steering Pump	External   Gear Pump
	Steering   Cylinder Bore（mm)	50
	Qty（pcs）	2
Braking   System	Service   Brake		Drum Brake
	Brake Drum（mm)		250
	Parking   Brake		Drum Brake
	Distribution   Valve	Model	DL10
		Type	Triple valve   stem
	Dumping   Cylinder-Bore		Ø63
	Lifting   Cylinder-Bore		Ø70
Oil Capacity	Hydraulic   Oil Tank（L)		30
	Brake Fluid（L)		0.8

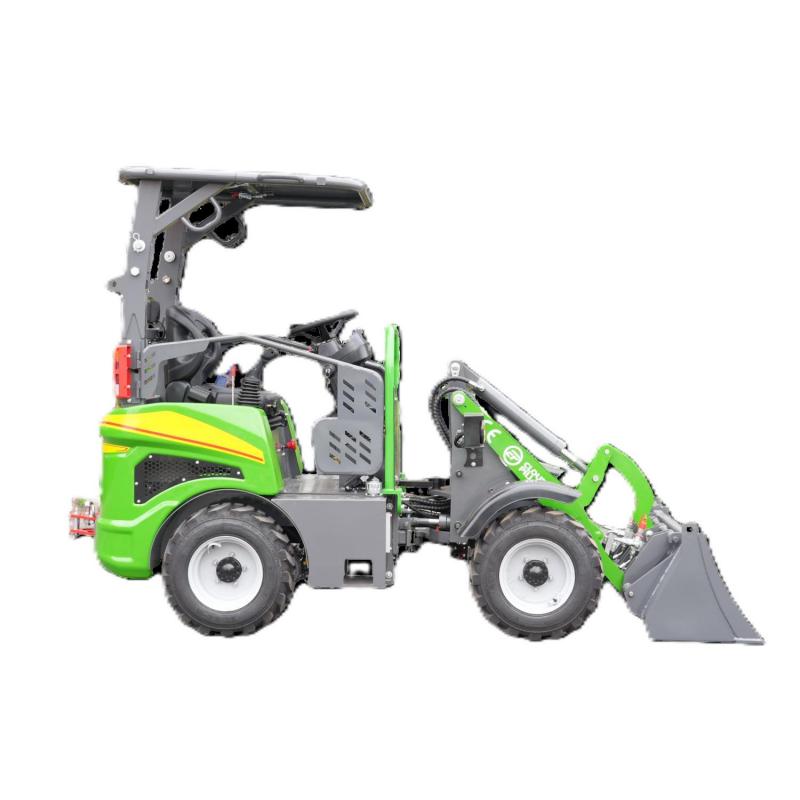

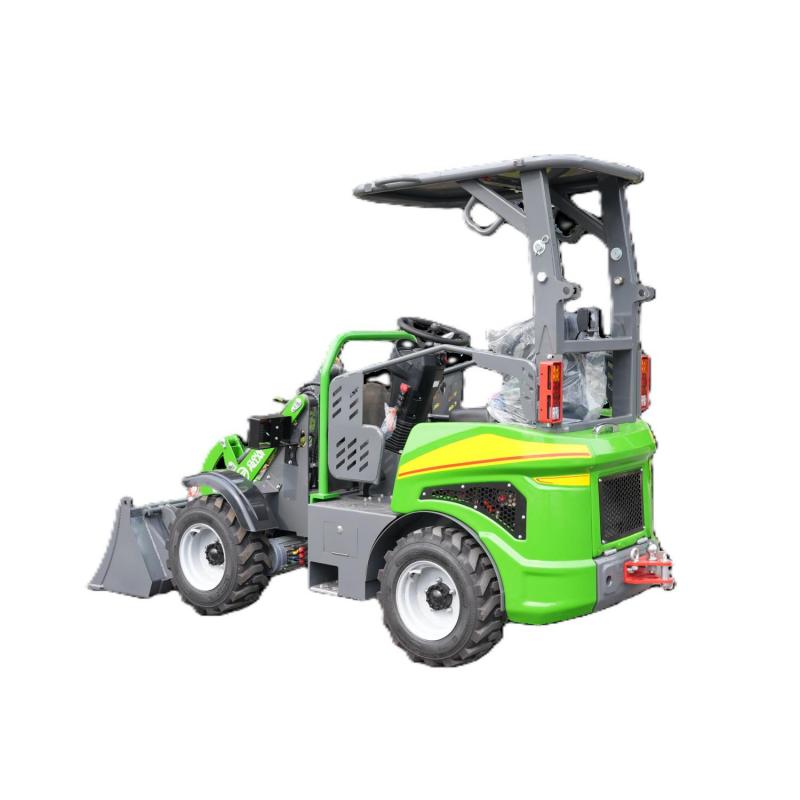

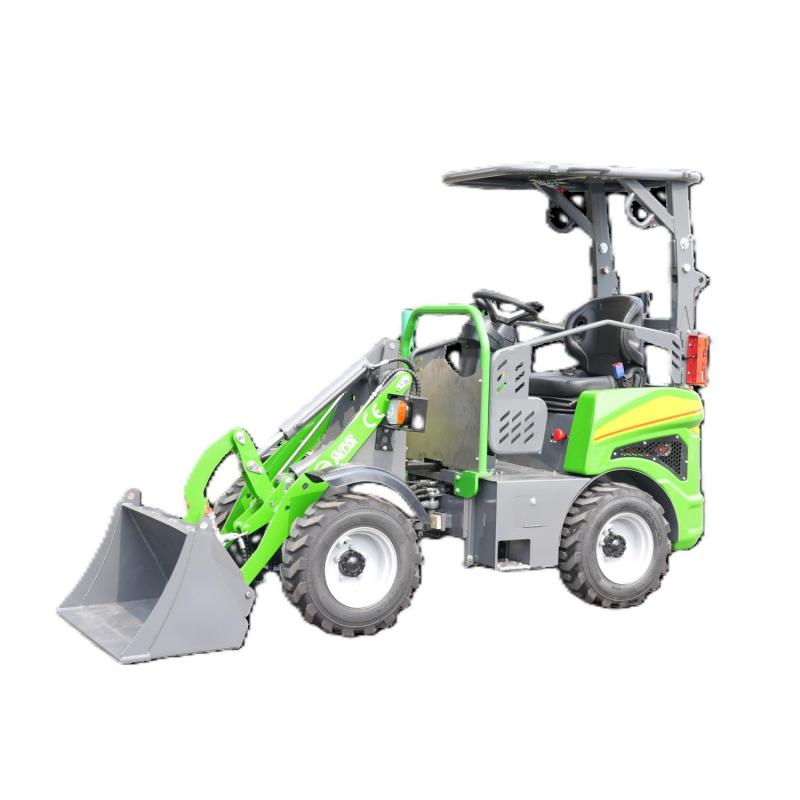

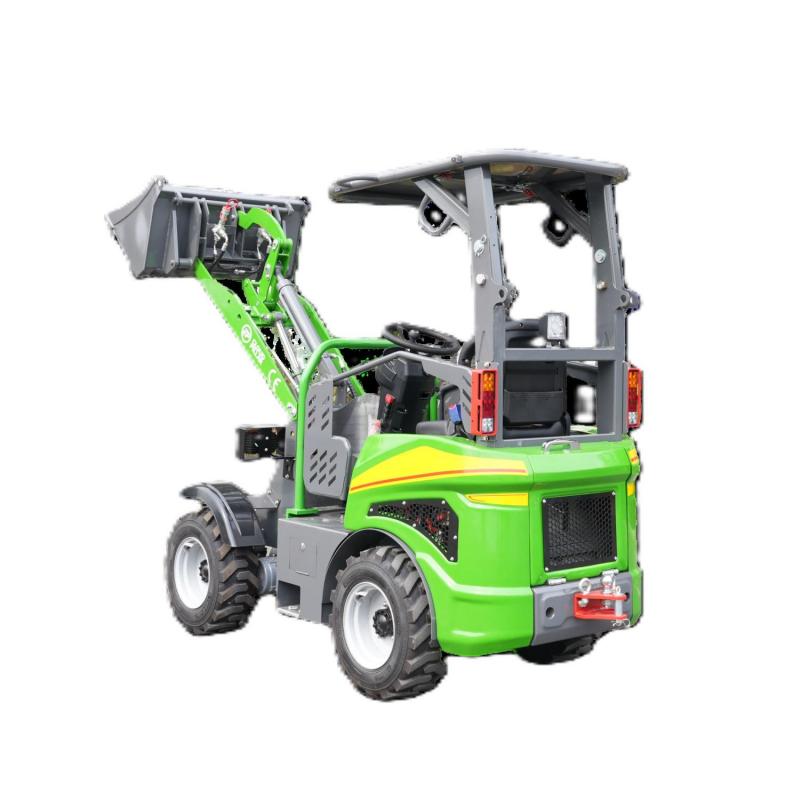

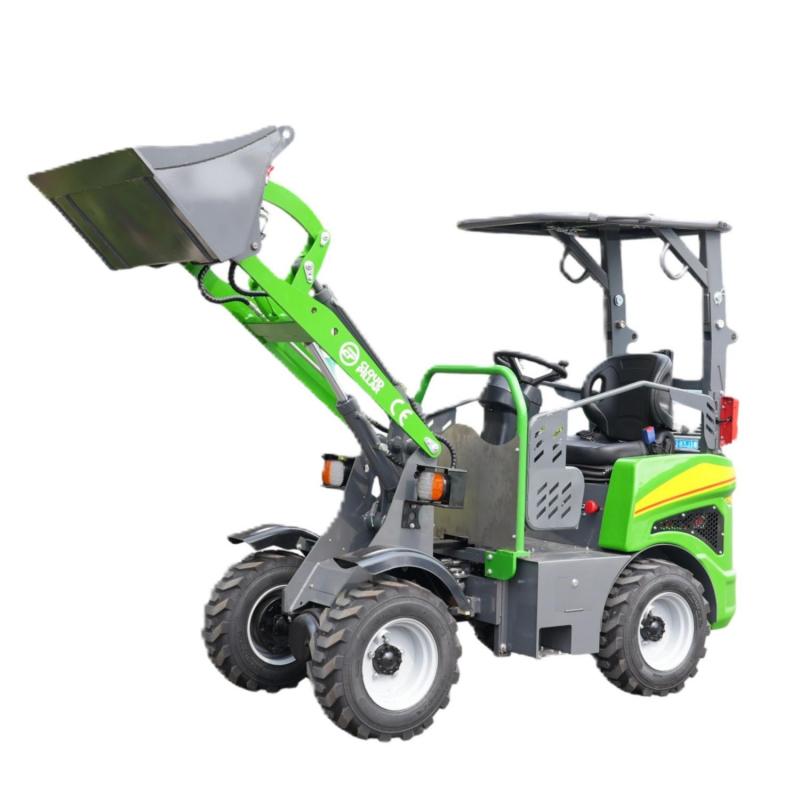

The W600 electric loader is a compact and environment friendly material handling machine driven by full electric ...

• The W600 electric loader is a compact and environment friendly material handling machine driven by full electric power, which brings zeroemission operation for various working sites. It has a rated load of 0.6 ton and the bucket rated capacity reaches 0.2 cubic meter. Its dumping height is 1260 mm and lifting height can hit 2175 mm, while the dumping reach measures 560 mm. The machine can handle maximum lifting weight up to 650 kg and deliver max excavation force of 10 kN. It can climb slopes up to 30 degrees, which enables stable travelling on uneven ground. The max turning angle is 36 degrees plus or minus 1 degree and the swing degree of rear axle is 7 degrees, so it can adapt to complicated road conditions. In terms of dimension and weight, the overall length with bucket on ground position is 3140 mm, the overall width is 1100 mm and overall height is 2085 mm. Its wheel base is 1380 mm and minimum ground clearance is 160 mm to avoid bottom scraping. The net weight of this electric loader is 1300 kg and its turning radius is 2700 mm. Such compact body size makes it suitable for narrow working spaces where large size loaders cannot enter. It can be widely applied in multiple scenarios. It works well in indoor warehouse material moving and stacking tasks, because it generates no exhaust gas and low running noise. It is also a good option for farm yards to transport feed fertilizer and agricultural harvest.
